Feature Description

●2 sets of 40A main contact+1 set of auxiliary contact
● When the main contact sticks,Auxiliary contacts meet the safety monitoring function (According to IEC61810-3)
● Contact gap :3.6mm(main contact) 1.0mm(auxiliary contact)Auxiliary contact:Min0.5mm(When the main contact sticks)
● Coil power is:1.88W
● UL insulation system:Class F

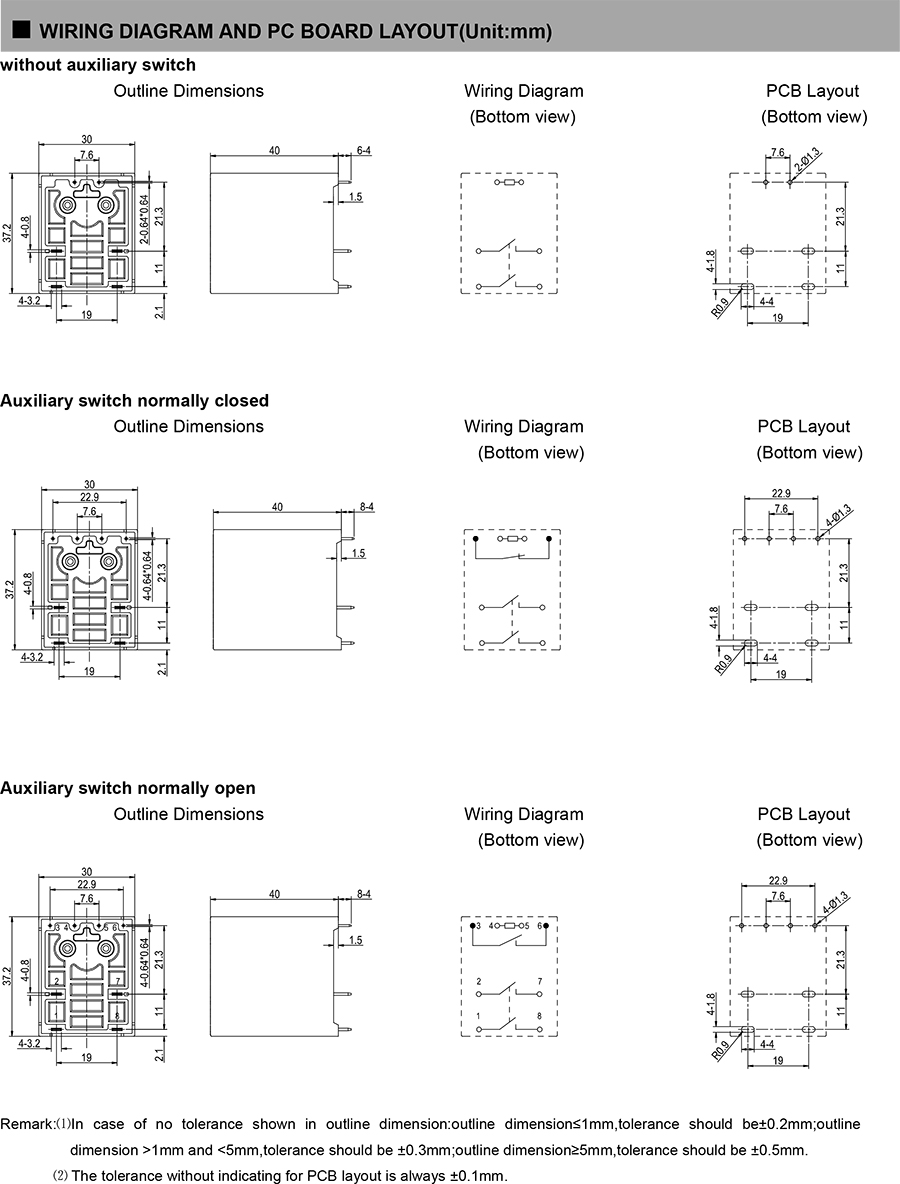

● Outline Dimensions:(37.2x30x40)mm
● Main applications: Inverter for solar photovoltaic power generation,AC charge spots
● The coil voltage applied to complete machine to save power loss
